Double sided led sign super slim rental cabinet truck mobile led display screen

Product Categories

Shenzhen Jingcan Opto-Tec Co.,Ltd

Contact Now

Brand Name : JC

Model Number : JC-FSO-PH10MM

Certification : CE,ROHS,EMC

Place of Origin : GuangDong

MOQ : 1 square meter

Price : Discuss

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 square meter per month

Delivery Time : 7~10 working days after advance payment arrived .

Packaging Details : Paper carton / Wooden case/ Flight case

Chip Color : full color

Brightness : 6500nits

Waterproof : IP65

Drive method : 1/4 Scan

Input voltage : 5V/40A

Lifespan : More than 100,000hours

Usage : outdoor

Pixels : 10mm

Contact Now

1. High brightness 12000nits
2. Outdoor waterproof IP68
3. CE ROHS ETL SGS SAA Fcc UL
4. Low power consumption
5. AC110-240V

chnical parameter
Unit board	Pixel pitch	10mm
	Module size	*160mm160mm ( 320mm160mm, 320mm320mm)**
	Resolution of module	16*16dots
	Density of pixel	10000dots/m2
	Pixel configuration	LED346 1R1G1B
Main Technical parameter	Red wavelength	620-630nm; 750-900mcd
	Green wavelength	525-530nm;1900-2100mcd
	Blue wavelength	465-470nm;350-450mcd
	Colors	16777216
	Best viewing distance	8-160m
	Horizontal/Vertical Viewing angle	120 degree/60 degree
	Gray scale	16bits per color
	Color temperature	6500k
	Brightness	More than 6500cd/sqm
	IP grade	Front :IP67 back: IP65
	Frame frequency	60HZ
	Refresh frequency	≥2000HZ
	Control method	Synchronization/Asynchronization
	Drive method	1/4 Scan
	Temperature	Storage:-30°C-+85°C
	Temperature	Working:-20°C-+65°C
	Operating ambient humidity	10%—95%RH
	Earth leakage current	< 2mA
	Defects rate.	≤0.00001(Led display line standard<0.0001)
	Flatness	Tolerance of interpixel≤0.3mm
	Flatness	Tolerance of modules clearance≤0.6mm
	MTBF	More than 10,000 hours
	Life span	More than 100,000hours
Power	Operating voltage	AC110V/220V±10%
	Maximum/Average power consumption	800/350w/m2
	Current	≤20mA(single LED)
	Power switch	Automatic switch
Control system	CPU	Pentium4 or above
	Signal Input	Composite ,S-video,Component,VGA,DVI,HDMI,SDI,HD_SDI,etc
	Controlling system	main controller card+optical fiber transmission
	Control method	Asynchronization
	Systems operating platforms	WinXP,Win2000,Vista, Win7, Win8 etc.
Softer ware	LED media player

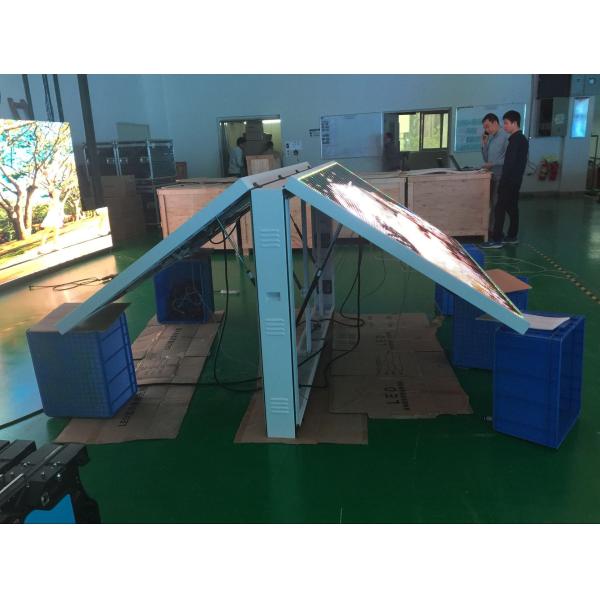

Frame & Waterproof Double Sided Cabinet Installation

Double sided led sign super slim rental cabinet truck mobile led display screen

Company culture

Double sided led sign super slim rental cabinet truck mobile led display screen
